Travel Drives

Travel Drives
Travel Drives
Product Code : 18
Brand Name : A V INDUSTRIES
Product Specifications
  • Warranty
  • 1 year
Product Description

Travel Drives

Relying on our wide experience and knowledge in this sector, we are counted amongst the top most leading & reputed manufacturers of Travel Drives. We manufacture these drives using the best quality of raw material procured from reliable vendors in the market. These drives are known for their features such as durability, light weight & corrosion resistant surface. Travel Drives are used in heavy cranes and trolleys for smooth operation while lifting heavy objects.

Further Details

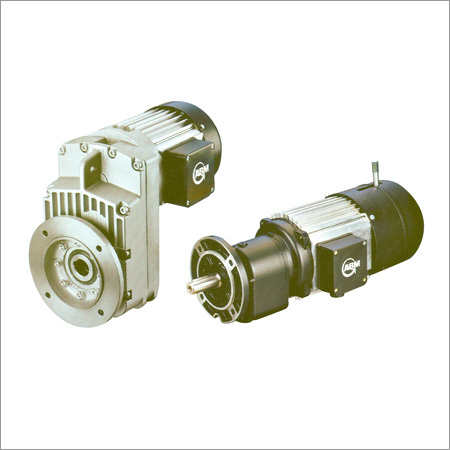

All drive systems represents compact unit consisting of Gearbox, Motor and Brake. Travel drives are available as helical geared motors (G series) or Shaft mounted hollow shaft geared motors (FGA series). ABM has three product lines of crane travel drives.

F Type Gearbox for 5/20 mpm speed & two motor operation Load= Crane weight+max lifting load.





Technical Specifications:

Wheel Dia (mm)

Model

Ratio

Load

2xP(kw)

A

B

C

D

E

ØF

G

H

125

FGA423F/4KD71a

56.06

4200

0.12

127.5

252.5

209

80.5

181

30

139

117


FGA423F/4KD71b

56.06

5800

0.18

127.5

252.5

209

80.5

181

30

139

117


FGA423F/4KD80a

56.06

9500

0.25

136.5

276

209

80.5

181

30

158

117

160

FGA423F/4KD71a

70.05

6500

0.18

127.5

252.5

209

80.5

181

30

139

117


FGA423F/4KD71b

70.05

10500

0.25

136.5

276

209

80.5

181

30

158

117


FGA423F/4KD80a

70.05

15000

0.37

136.5

276

209

80.5

181

30

158

117

200

FGA423F/4KD71a

82.66

6800

0.18

127.5

252.5

209

80.5

181

30

139

117


FGA423F/4KD71b

90.48

12000

0.25

136.5

276

209

80.5

181

30

158

117


FGA423F/4KD80a

90.48

19000

0.37

136.5

276

209

80.5

181

30

158

117

250

FGA423F/4KD80a

103.97

12000

0.25

136.5

276

209

80.5

181

30

158

117


FGA423F/4KD80b

103.97

19500

0.37

136.5

276

209

80.5

181

30

158

117


FGA1353F/4KD90sa

110.28

30000

0.55

165

308

266

106

215

50

177

165

315

FGA423F/4KD80A

144.87

14000

0.25

136.5

276

209

80.5

181

30

158

117


FGA1353F/4KD80b

136.75

21500

0.37

165

276

266

106

215

50

158

165


FGA1353F/4KD90Sa

136.75

33000

0.55

165

308

266

106

215

50

177

165

400

FGA1353F/4KD80b

166.83

22000

0.37

165

276

266

106

215

50

158

165


FGA1353F/4KD90Sa

166.83

33000

0.55

165

308

266

106

215

50

177

165


FGA1353F/4KD90La

166.83

47000

0.75

165

333

266

106

215

50

177

165


 G Type Gearbox for 5/20 mpm speed & two motor operation. Load= Crane weight+max lifting load.



Wheel Dia (mm)

Model

Ratio

Load

2xP(KW)

A

B

C

ØD

ØE

F

G

125

G90F/4KD71a

54.94

4500

0.12

424

36

139

22

120

150

90


G90F/4KD71b

54.94

6000

0.18

424

36

139

22

120

150

90

160

3G90F/71/4KD71a

65.51

4800

0.12

486

36

139

22

120

150

90


3G90F/71/4KD71b

65.51

6200

0.18

486

36

139

22

120

150

90

200

3G100F/71/4KD71b

82.85

6500

0.18

491

42

139

25

140

170

100


3G112F/80/4KD80a

93.39

12000

0.25

516

58

158

30

200

212

112


3G132F/90/4KD80b

83.53

18000

0.37

559

58

158

35

200

232

132

250

3G112F/80/4KD80a

104.84

12000

0.25

516

58

158

30

200

212

112


3G132F/90/4KD80b

105.62

20000

0.37

559

58

158

35

200

232

132


3G160F/100/4KD90Sa

109.35

30000

0.55

616.5

82

177

45

200

260

160

315

3G160F/100/4KD80b

131.17

21000

0.37

585

82

158

45

300

310

160


3G180F/100/4KD90Sa

135.83

33000

0.55

656.5

82

177

55

300

330

180


3G180F/100/4KD90La

135.63

36000

0.75

681.5

82

177

55

300

330

180


3G180F/100/4KD90Sa

166.21

33000

0.55

656.5

82

177

55

300

330

180


3G200F/132/4KD90La

166.46

47000

0.75

720.5

105

177

60

300

350

200


3G200F/132/4KD100La

166.46

56000

1.1

754

105

196

60

300

350

200

Further Details:

Travel Drive Technology for Cranes and Hoist from ABM Greiffenberger, Germany.

LIfting and conveying loads require powerful and reliable drives which can work in harsh environment and unfavourable conditions. For last 25 years ABM travel drives are exceeding the highest expectations of more than 60 OEMs all over the world. Optimised design and top quality of ABM made in Germany products gives a Competitive edge to OEM users.

All drive systems represents compact unit consisting of Gearbox, Motor and Brake. Travel drives are available as helical geared motors (G series) or Shaft mounted hollow shaft geared motors (FGA series). ABM has three product lines of crane travel drives.

F Type Gearbox for 5/20 mpm speed & two motor operation Load= Crane weight+max lifting load.





Advantages

  • Made in Germany high quality drive unit.
  • Special rotor for soft start and stop.
  • Powerful 8/2 pole two speed crane duty motor in Profiline drives.
  • Life time lubrication.
  • Long life time brakes (1 million cycle without adjustment).
  • Versatile mounting options.
  •  aluminium alloy die east housing.
  • Built in flywheel with bearings on both sides.
  • Hardened and precision ground helical gears.
  • Very low noise Gearing design.
  • Asbestos free brake pads.
