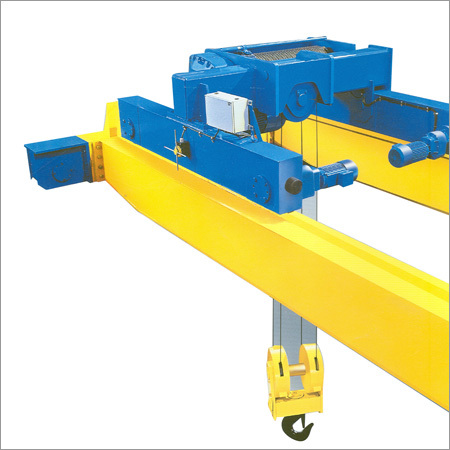

AVI Double Girder Crab Unit

AVI Double Girder Crab Unit
AVI Double Girder Crab Unit
Product Code : 02
Brand Name : A V INDUSTRIES
Product Specifications
  • Warranty
  • 1 year
Trade Information
  • FOB Port
  • By Sea/By Air Port
  • Payment Terms
  • Cash in Advance (CID), Letter of Credit (L/C)
  • Supply Ability
  • Customize Per Months
  • Delivery Time
  • 3-4 Week
  • Packaging Details
  • Wooden box packing.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • ISO Certified Co.
Product Description

AVI Double Girder Crab Unit

Persistently marching in today’s competitive market, our company is recognized as one of the leading manufacturers & exporters of AVI Double Girder Crab Unit. These crab units are known for their features such as easy usage, weather resistant surface and negligible maintenance. AVI crab units are available in different models at market leading prices to meet the requirements of our clients. AVI Double Girder Crab Unit is used in textile industry, ship ports and automotive industry.



·          Technical Specifications:

Model No.

SWL (t)/FEM

Hoisting Speed

No. of Fall

A

B

C

For 6 mtr lift

For 9 mtr Lift

For 12 mtr LIft

D

E

D

E

D

E

D5000/2S

5/3m

0.66/4.0

4/1

530

1200

1630

1300

1820

1510

2030



D10000/2S

10/2m

0.66/4.0

4/1

655

1200

1680

1510

1980

1765

2235

2020

2490

D12500/2S

12.5/2m

0.66/4.0

4/1

655

1200

1680

1590

2060

1875

2345

2160

2630

D16000/2S

16/2m

0.66/4.0

4/1

730

1600

2100

1510

2050

1765

2305

2020

2560

D20000/2S

20/2m

0.53/3.4

4/1

760

1800

2310

1560

2090

1845

2375

2130

2660

D25000/2S

25/2m

1.0/4.0

6/1

860

2000

2500

1700

2240

125

2465

2150

2690

D32000/2S

32/2m

0.8/3.3

6/1

1010

2300

2990

2210

2820

2480

3090

2750

3360

D40000/2S

40/2m

0.6/2.6

6/1

1165

2500

3190

2320

2930

2590

3200

2860

3470

D25000/VFD

25/2m

0-8

4/1

860

2000

2500

1650

2190

1875

2415

2100

2640

D32000/VFD

32/2m

0-6.3

4/1

1010

2300

2990

2040

2650

2310

2920

2580

3190

D40000/VFD

40/2m

0-4.1

6/1

1165

2500

3190

2320

2930

2590

3200

2860

3470





Features

  • All units are fitted with Gear drives from ABM Greiffenberger's Germany.
  • Modular and compact Drive units consisting of Gear box+motor+Brake.
  • All motors are two speed motors. Hoisting in 1:6 ratio and Travel drive in 1:4 ratio.
  • Hoisting drum directly mounted to Gear drive eliminating any coupling, bearing housings etc. Minimum no. of components means minimum maintenance.
  • All travel drives directly mounted to wheels through splined shaft.
  • Articulate joints in crab unit helps equal distribution of load in CT wheels.
  • Fabricated crab and end carriages are completely machined after fabrication giving every closed tolerances and perfect alighments.
  • Fly wheels fitted in travel drives for smooth operation.
  • All travel drives with soft start/stop feature.
  • Equipped with two upper and lower position geared limit switches in hoisting.
  • Available in load range from 5 ton to 63 tons in different class of duties and lift.
  • Also available with Variable Frequency Drive.

Note

  • Standard speed  of 5/20 mpm for cross Travel.
  • All dimensions are in mm.
  • All dual speed Crabs can be provided into VFD also.
